PhysarumGraph implements an adaptive network algorithm inspired by the Physarum polycephalum slime mold, based on the research by Tero et al. (2010). The network evolves through a flow-based dynamics system that reinforces heavily-used edges and removes underused ones.

Mathematical Model#

The algorithm simulates a flow network where edges have conductivities that adapt based on usage:

Flow Calculation:

At each time step, pressures at nodes are computed by solving:

A · p = b

where:

  • A[i,i] = Sigmaⱼ (Dᵢⱼ / Lᵢⱼ) (sum of adjacent edge conductances)

  • A[i,j] = -(Dᵢⱼ / Lᵢⱼ) for adjacent edges

  • b[i] = 1/|sources| for source nodes

  • b[i] = -1/|sinks| for sink nodes

  • b[i] = 0 otherwise

Conductivity Update:

D'ᵢⱼ = Dᵢⱼ + dt · (|Qᵢⱼ|^gamma - Dᵢⱼ)

where:

  • Dᵢⱼ is the current conductivity

  • Qᵢⱼ is the flow through edge (i,j)

  • gamma controls adaptation strength

  • dt is the time step

Class Definition#

class PhysarumGraph(BiologicalGraph):
    """
    Physarum-like adaptive network (Tero et al. 2010) with:
    - Multiple sources/sinks
    - Automatic reconnection if fragmented
    - Optional base graphs: 'delaunay' or 'complete'
    """

Constructor#

def __init__(self, setpoints, sources=None,
             dt=0.1, gamma=1.5, eps=1e-3, steps=200,
             base_graph="delaunay", reconnect=True)

Parameters:

  • setpoints : SetPoints

    • The set of points to connect. Must be a SetPoints instance.

  • sources : list of int, optional, default=None

    • Indices of source nodes (flow originates here)

    • If None, defaults to [0] (first node)

    • All nodes not in sources become sinks

    • Must contain at least one valid index

  • dt : float, optional, default=0.1

    • Time step for numerical integration

    • Smaller values → more stable but slower convergence

    • Typical range: 0.05 - 0.2

  • gamma : float, optional, default=1.5

    • Exponent controlling adaptation strength

    • gamma < 1: Weak reinforcement, uniform networks

    • gamma ≈ 1-2: Balanced (recommended)

    • gamma > 2: Strong reinforcement, tree-like structures

  • eps : float, optional, default=1e-3

    • Threshold for edge removal (minimum conductivity)

    • Edges with D < eps are pruned

    • Smaller values → denser final networks

  • steps : int, optional, default=200

    • Number of evolution iterations

    • More steps → better convergence but slower

    • Typical range: 100 - 500

  • base_graph : str, optional, default=”delaunay”

    • Initial graph structure

    • Options:

      • "delaunay": Delaunay triangulation (recommended for large n)

  • reconnect : bool, optional, default=True

    • Whether to automatically reconnect fragmented components

    • Recommended to keep True for reliable results

Raises:

  • TypeError : If setpoints is not a SetPoints instance

  • ValueError : If base_graph is not ‘delaunay’ or ‘complete’

  • ValueError : If no valid sources are provided

Attributes Created:

  • self.sources : list of int - Valid source node indices

  • self.sinks : list of int - All non-source nodes

  • self.dt : float - Time step

  • self.gamma : float - Adaptation exponent

  • self.eps : float - Pruning threshold

  • self.reconnect : bool - Reconnection flag

  • self.graph.es["D"] : Edge conductivities

  • self.graph.es["Q"] : Edge flows

Methods#

evolve()#

def evolve(self, steps=100)

Description:

Runs the Physarum dynamics for a specified number of time steps, updating edge conductivities based on flow.

Parameters:

  • steps : int, default=100

    • Number of evolution iterations

Process:

  1. For each step:

    • Solve for pressures at all nodes

    • Calculate flows through all edges

    • Update edge conductivities

    • Reconnect components (if enabled)

  2. After all steps:

    • Remove edges with conductivity below eps

    • Update graph metrics

Notes:

  • Called automatically during initialization

  • Can be called again to continue evolution

  • Handles numerical instabilities gracefully

_update_step() (Internal)#

def _update_step(self)

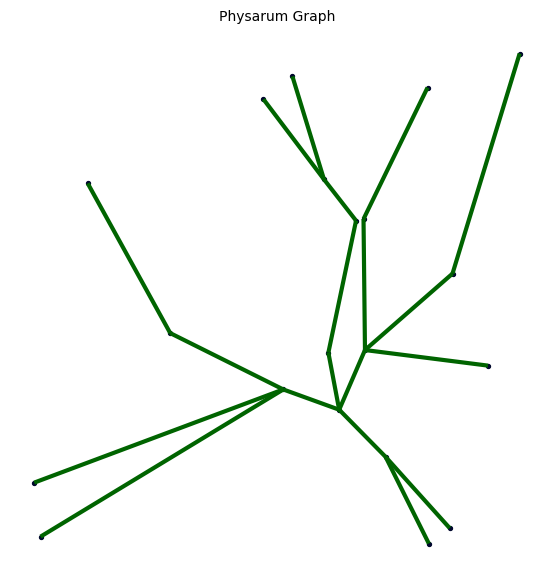

Example graphs

Description:

Performs one iteration of the Physarum dynamics.

Algorithm:

  1. Build conductance Laplacian matrix A

  2. Set up source/sink vector b

  3. Solve A·p = b for pressures p

  4. Calculate flows Q = D·(∇p)/L

  5. Update conductivities D’ = D + dt·(|Q|^gamma - D)

  6. Enforce minimum conductivity

Handles:

  • Linear algebra errors (fallback to least squares)

  • Zero-length edges (with numerical safeguards)

_reconnect_components() (Internal)#

def _reconnect_components(self)

Description:

Reconnects disconnected graph components by adding edges between nearest points.

Example graphs

Algorithm:

  1. Find all connected components

  2. Calculate component centroids

  3. Find pair of closest centroids

  4. Find closest point pair between those components

  5. Add edge with initial conductivity 0.05

Notes:

  • Only called if reconnect=True

  • Ensures network remains connected during evolution

  • Critical for networks that may fragment during pruning

Edge Attributes#

After evolution, edges contain the following attributes:

  • "dist_eucl" : float - Euclidean length of edge

  • "D" : float - Final conductivity (represents edge strength/importance)

  • "Q" : float - Final flow through edge

Usage Examples#

Example 1: Basic Usage#

import proximitygraphs as pg

# Create points
points = pg.SetPoints.uniform_square(n=100, seed=42)

# Create Physarum graph with default parameters
graph = pg.PhysarumGraph(
    points,
    sources=[0],      # Flow from first node
    steps=200         # 200 evolution steps
)

# Analyze result
print(f"Nodes: {graph.n}")
print(f"Edges: {graph.m}")
print(f"Components: {graph.cc}")
print(f"Mean degree: {graph.degrees.mean()}")

# Visualize
graph.draw(title=True, details=True)

Example 2: Multiple Sources#

# Multiple source nodes
points = pg.SetPoints.uniform_square(n=50, seed=123)

graph = pg.PhysarumGraph(
    points,
    sources=[0, 49],  # Two sources at opposite ends
    gamma=2.0,        # Stronger adaptation
    steps=300
)

# All other nodes become sinks
print(f"Sources: {graph.sources}")
print(f"Sinks: {graph.sinks}")

Example 3: Parameter Comparison#

from proximitygraphs import Experiment

exp = Experiment(
    name="Physarum Parameter Study",
    point_config={'method': 'uniform_square', 'params': {'n': 80}},
    n_simulations=20,
    seed=42
)

# Different gamma values
for gamma in [0.5, 1.0, 1.5, 2.0, 2.5]:
    exp.add_graph_config(
        pg.PhysarumGraph,
        name=f'Physarum-gamma{gamma}',
        sources=[0],
        gamma=gamma,
        steps=200
    )

results = exp.run()
exp.compare_metrics(['n_edges', 'mean_degree', 'mean_length'])

Example 4: Complete vs Delaunay Base#

points = pg.SetPoints.normal_dist(n=60, seed=999)

# Using Delaunay base (faster, recommended)
graph_delaunay = pg.PhysarumGraph(
    points,
    base_graph="delaunay",
    sources=[0],
    steps=150
)

# Using complete base (slower, exact)
graph_complete = pg.PhysarumGraph(
    points,
    base_graph="complete",
    sources=[0],
    steps=150
)

print(f"Delaunay base edges: {graph_delaunay.m}")
print(f"Complete base edges: {graph_complete.m}")

Example 5: Custom Evolution#

points = pg.SetPoints.uniform_square(n=40, seed=555)

# Create graph with minimal initial evolution
graph = pg.PhysarumGraph(
    points,
    sources=[0, 39],
    steps=50,  # Short initial evolution
    gamma=1.5
)

print(f"After 50 steps: {graph.m} edges")

# Continue evolution
graph.evolve(steps=100)
print(f"After 150 total steps: {graph.m} edges")

# Even more evolution
graph.evolve(steps=150)
print(f"After 300 total steps: {graph.m} edges")

Performance Characteristics#

Time Complexity: O(steps × m × n)

  • Linear in number of steps

  • Each step requires solving n×n linear system

  • Depends on number of edges m

Space Complexity: O(n² + m)

  • n×n adjacency/conductance matrix

  • m edge attributes

Typical Running Times (approximate):

Points (n)

Steps

Base Graph

Time

50

200

Delaunay

< 1s

100

200

Delaunay

2-3s

200

200

Delaunay

10-15s

100

200

Complete

15-20s

Tips and Best Practices#

  1. Source Selection

    • Choose sources at opposite ends for path-finding problems

    • Multiple sources create hub-like structures

    • Single source creates radial/tree structures

  2. Parameter Tuning

    • Start with defaults (gamma=1.5, dt=0.1, steps=200)

    • Increase gamma for sparser networks

    • Decrease gamma for denser networks

    • More steps if network hasn’t converged

  3. Base Graph Choice

    • Use Delaunay for n > 50 (much faster)

    • Use complete only for small n or exact solutions

    • Delaunay gives very similar results in practice

  4. Monitoring Convergence

    # Track edge count over time
graph = pg.PhysarumGraph(points, sources=[0], steps=50)
edge_counts = [graph.m]

for _ in range(5):
    graph.evolve(steps=50)
    edge_counts.append(graph.m)

print(f"Convergence: {edge_counts}")
# If stable, network has converged

  5. Handling Large Networks

    • Use sparse matrix operations (future optimization)

    • Reduce steps for initial exploration

    • Consider parallelization for parameter sweeps

Common Issues and Solutions#

Issue 1: Network fragments during evolution

# Solution: Enable reconnection (default)
graph = pg.PhysarumGraph(points, reconnect=True)

Issue 2: Too many edges remain

# Solution: Increase epsilon or gamma
graph = pg.PhysarumGraph(points, eps=1e-2, gamma=2.0)

Issue 3: Network becomes too sparse

# Solution: Decrease epsilon or gamma
graph = pg.PhysarumGraph(points, eps=1e-4, gamma=1.0)

Issue 4: Slow convergence

# Solution: Increase time step (carefully)
graph = pg.PhysarumGraph(points, dt=0.15)

References#

  1. Tero, A., Takagi, S., Saigusa, T., Ito, K., Bebber, D. P., Fricker, M. D., … & Nakagaki, T. (2010). Rules for biologically inspired adaptive network design. Science, 327(5964), 439-442.

  2. Nakagaki, T., Yamada, H., & Tóth, Á. (2000). Maze-solving by an amoeboid organism. Nature, 407(6803), 470-470.
