FungalGraph

FungalGraph#

Overview#

FungalGraph implements a bio-inspired network construction algorithm that mimics fungal mycelium growth patterns. Unlike the iterative evolution of PhysarumGraph, FungalGraph uses a constructive metaheuristic approach that builds the network through a growth process, then prunes weak edges.

Algorithm Overview#

The algorithm proceeds in three phases:

  1. Initialization Phase

    • Start with a PhysarumGraph backbone for basic connectivity

    • Compute distance matrix for all point pairs

    • Identify candidate edges below distance threshold

  2. Growth Phase

    • Iteratively evaluate candidate edges

    • Add edges based on multi-objective benefit function

    • Enforce degree constraints (avoid star topologies)

    • Ensure connectivity between components

  3. Pruning Phase

    • Calculate edge betweenness centrality

    • Protect backbone edges

    • Remove weakest non-backbone edges

    • Maintain connectivity

Benefit Function#

Edges are evaluated using a weighted combination of three factors:

Benefit(i,j) = 0.4 × distance_score + 0.3 × degree_balance + 0.3 × shortcut_benefit

where:

Distance Score:

distance_score = 1 / (d_ij + epsilon)

  • Favors short edges (more efficient connections)

Degree Balance:

degree_balance = 1 / (1 + |deg(i) - deg(j)|)

  • Favors connecting nodes with similar degrees

  • Prevents hub formation

Shortcut Benefit:

shortcut_benefit = max(0, current_path_length - 1) / n

  • Rewards edges that significantly shorten paths

  • Normalized by network size

Class Definition#

class FungalGraph(BiologicalGraph):
    """
    Fungal network constructed using a bio-inspired expansion metaheuristic.

    This class mimics the growth pattern of fungal networks to create
    efficient, connected networks that:
    - Prioritize short edges for efficiency
    - Find shortest paths between node pairs
    - Guarantee a single connected component
    - Avoid star topologies through degree control
    - Balance between cost and redundancy
    """

Constructor#

def __init__(self, setpoints,
             max_degree=6,
             distance_threshold_percentile=75,
             growth_iterations=100,
             prune_weak_factor=0.3,
             sources=None,
             dt=0.1, gamma=1.5, eps=1e-3, steps=200,
             seed=None)

Parameters:

  • setpoints : SetPoints

    • The set of points to connect

    • Must be a valid SetPoints instance

  • max_degree : int, optional, default=6

    • Maximum degree allowed per vertex

    • Prevents star topologies and hub formation

    • Typical range: 4-8

    • Higher values allow more connected networks

    • Lower values force more distributed structures

  • distance_threshold_percentile : float, optional, default=75

    • Only consider edges below this percentile of all distances

    • Filters out long-distance connections

    • Typical range: 60-90

    • Lower values → sparser candidate set

    • Higher values → more candidate edges to evaluate

  • growth_iterations : int, optional, default=100

    • Number of growth cycles to execute

    • More iterations → potentially denser networks

    • Typical range: 50-200

    • Growth may stop early if no candidates remain

  • prune_weak_factor : float, optional, default=0.3

    • Fraction of non-backbone edges to prune after growth

    • Range: [0, 1]

    • 0 = no pruning

    • 0.3 = remove weakest 30% of added edges

    • 1 = remove all non-backbone edges (extreme)

  • sources : list of int, optional, default=None

    • Source nodes for the PhysarumGraph backbone

    • If None, defaults to [0]

    • Affects initial backbone structure

  • dt : float, optional, default=0.1

    • PhysarumGraph time step parameter

    • Passed to backbone graph initialization

  • gamma : float, optional, default=1.5

    • PhysarumGraph adaptation strength

    • Passed to backbone graph initialization

  • eps : float, optional, default=1e-3

    • PhysarumGraph pruning threshold

    • Passed to backbone graph initialization

  • steps : int, optional, default=200

    • PhysarumGraph evolution steps

    • Passed to backbone graph initialization

  • seed : int, optional, default=None

    • Random seed for reproducibility

    • Controls stochastic edge selection during growth

    • Set for reproducible results

Raises:

  • TypeError : If setpoints is not a SetPoints instance

Attributes Created:

  • self.max_degree : int - Maximum allowed vertex degree

  • self.sources : list of int - Source nodes

  • self.dt, self.gamma, self.eps, self.steps : Backbone parameters

Methods#

_initialize_network() (Internal)#

def _initialize_network(self, distance_threshold_percentile,
                       growth_iterations, prune_weak_factor, seed)

Description:

Constructs the fungal network through the three-phase algorithm.

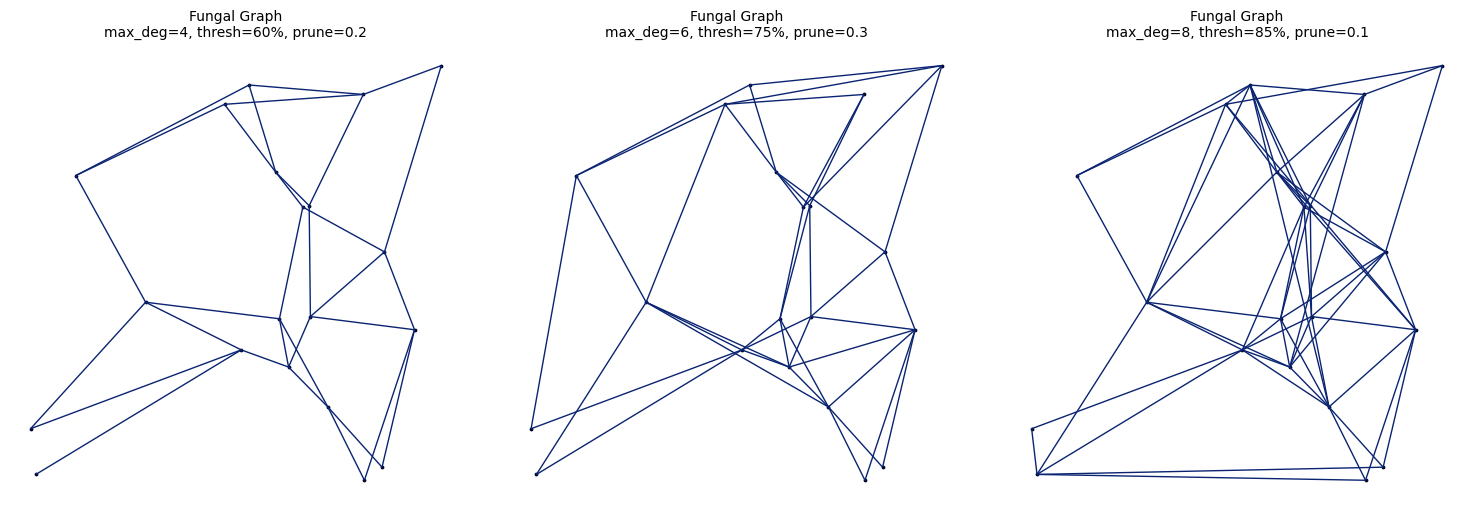

Example graphs

Algorithm Details:

Phase 1: Backbone Creation

# Create PhysarumGraph as initial structure
base = PhysarumGraph(setpoints, sources, ...)
# Add all backbone edges to graph
# Compute distance matrix

Phase 2: Growth

for iteration in growth_iterations:
    for each candidate edge (i, j):
        # Check degree constraints
        if deg(i) >= max_degree or deg(j) >= max_degree:
            continue

        # Calculate benefit components
        dist_score = 1 / (distance + epsilon)
        degree_balance = 1 / (1 + |deg(i) - deg(j)|)
        shortcut_benefit = path_improvement / n

        # Weighted combination
        benefit = 0.4*dist + 0.3*deg + 0.3*shortcut

        # Probabilistic acceptance
        if random() < benefit * 0.5:
            add_edge(i, j)

Phase 3: Connectivity Enforcement

while number_of_components > 1:
    # Find closest pair of components
    # Add edge between them

Phase 4: Pruning

# Calculate edge betweenness
betweenness = edge_betweenness()

# Protect backbone edges
protected = backbone_edges

# Sort non-backbone by betweenness (descending)
# Keep top (1 - prune_weak_factor) fraction
# Delete the rest

evolve() (Placeholder)#

def evolve(self, steps=100)

Description:

Placeholder method required by BiologicalGraph interface. Does nothing for FungalGraph since it uses a constructive approach rather than iterative evolution.

Parameters:

  • steps : int, default=100

    • Ignored (included for interface compatibility)

Note:

Unlike PhysarumGraph, FungalGraph builds its final structure during initialization. The network does not continue to evolve after creation.

Usage Examples#

Example 1: Basic Usage#

import proximitygraphs as pg

# Create points
points = pg.SetPoints.uniform_square(n=100, seed=42)

# Create Fungal graph with default parameters
graph = pg.FungalGraph(
    points,
    max_degree=6,
    growth_iterations=100,
    prune_weak_factor=0.3,
    seed=42
)

# Analyze result
print(f"Nodes: {graph.n}")
print(f"Edges: {graph.m}")
print(f"Max degree: {max(graph.graph.degree())}")
print(f"Mean degree: {sum(graph.graph.degree()) / graph.n}")

# Visualize
graph.draw(title=True, details=True)

Example 2: Degree-Constrained Networks#

points = pg.SetPoints.uniform_square(n=80, seed=123)

# Strict degree constraint
strict_graph = pg.FungalGraph(
    points,
    max_degree=4,  # Very restrictive
    seed=42
)

# Relaxed degree constraint
relaxed_graph = pg.FungalGraph(
    points,
    max_degree=8,  # More permissive
    seed=42
)

print(f"Strict - Edges: {strict_graph.m}, Max deg: {max(strict_graph.graph.degree())}")
print(f"Relaxed - Edges: {relaxed_graph.m}, Max deg: {max(relaxed_graph.graph.degree())}")

Example 3: Sparsity Control#

points = pg.SetPoints.normal_dist(n=60, seed=999)

# Sparse network (aggressive pruning)
sparse = pg.FungalGraph(
    points,
    distance_threshold_percentile=60,  # Fewer candidates
    prune_weak_factor=0.5,             # Remove 50% of added edges
    seed=42
)

# Dense network (minimal pruning)
dense = pg.FungalGraph(
    points,
    distance_threshold_percentile=90,  # More candidates
    prune_weak_factor=0.1,             # Remove only 10%
    seed=42
)

print(f"Sparse: {sparse.m} edges")
print(f"Dense: {dense.m} edges")

Example 4: Parameter Sweep#

from proximitygraphs import Experiment

exp = Experiment(
    name="FungalGraph Parameter Study",
    point_config={'method': 'uniform_square', 'params': {'n': 100}},
    n_simulations=15,
    seed=42
)

# Vary max_degree
for deg in [4, 6, 8]:
    exp.add_graph_config(
        pg.FungalGraph,
        name=f'Fungal-deg{deg}',
        max_degree=deg,
        seed=42
    )

# Vary pruning
for prune in [0.1, 0.3, 0.5]:
    exp.add_graph_config(
        pg.FungalGraph,
        name=f'Fungal-prune{prune}',
        prune_weak_factor=prune,
        seed=42
    )

results = exp.run()
exp.compare_metrics(['n_edges', 'mean_degree', 'density'])

Example 5: Comparison with Other Graphs#

points = pg.SetPoints.uniform_square(n=100, seed=777)

# Create multiple graph types
fungal = pg.FungalGraph(points, seed=42)
physarum = pg.PhysarumGraph(points, sources=[0], steps=200)
mst = pg.MST(points)
delaunay = pg.DelaunayG(points)
gabriel = pg.GG(points)

# Compare properties
graphs = {
    'Fungal': fungal,
    'Physarum': physarum,
    'MST': mst,
    'Delaunay': delaunay,
    'Gabriel': gabriel
}

for name, g in graphs.items():
    print(f"{name:12} - Edges: {g.m:4}, Mean deg: {sum(g.graph.degree())/g.n:.2f}, "
          f"Max deg: {max(g.graph.degree()):2}")

Example 6: Reproducibility with Seeds#

points = pg.SetPoints.uniform_square(n=50, seed=100)

# Same seed → identical results
g1 = pg.FungalGraph(points, seed=42)
g2 = pg.FungalGraph(points, seed=42)

print(f"Graph 1: {g1.m} edges")
print(f"Graph 2: {g2.m} edges")
print(f"Identical: {g1.m == g2.m and g1.graph.get_edgelist() == g2.graph.get_edgelist()}")

# Different seed → different results
g3 = pg.FungalGraph(points, seed=99)
print(f"Graph 3: {g3.m} edges")
print(f"Different from 1: {g3.m != g1.m or g3.graph.get_edgelist() != g1.graph.get_edgelist()}")

Performance Characteristics#

Time Complexity: O(iterations × candidates + n² + m·log(m))

  • Iterations × candidates: Growth phase

  • n²: Distance matrix computation

  • m·log(m): Betweenness calculation

Space Complexity: O(n²)

  • Full distance matrix required

  • Edge list and attributes

Typical Running Times (approximate):

Points (n)

Iterations

Candidates

Time

50

100

~1000

2-3s

100

100

~4000

8-12s

200

100

~15000

45-60s

100

200

~4000

15-20s

Comparison: FungalGraph vs PhysarumGraph#

Feature

FungalGraph

PhysarumGraph

Approach

Constructive

Iterative evolution

Degree control

Built-in (max_degree)

Emergent

Determinism

Stochastic (with seed)

Deterministic

Network density

Controllable (pruning)

Emergent (eps)

Evolution after init

No

Yes (can continue)

Typical edge count

Medium

Low to medium

Backbone

PhysarumGraph

Delaunay/Complete

Best for

Balanced networks

Optimal paths

Tips and Best Practices#

  1. Choosing max_degree

    # For sensor networks (distributed)
graph = pg.FungalGraph(points, max_degree=4)

# For robust communication (redundancy)
graph = pg.FungalGraph(points, max_degree=8)

# For general purpose
graph = pg.FungalGraph(points, max_degree=6)  # Default

  2. Controlling Network Density

    # Sparse network
sparse = pg.FungalGraph(
    points,
    distance_threshold_percentile=65,
    growth_iterations=50,
    prune_weak_factor=0.4
)

# Dense network
dense = pg.FungalGraph(
    points,
    distance_threshold_percentile=85,
    growth_iterations=150,
    prune_weak_factor=0.1
)

  3. Ensuring Reproducibility

    # Always set seed for reproducible results
graph = pg.FungalGraph(points, seed=42)

  4. Balancing Growth and Pruning

    # Aggressive growth, minimal pruning
graph1 = pg.FungalGraph(
    points,
    growth_iterations=200,
    prune_weak_factor=0.1
)

# Conservative growth, aggressive pruning
graph2 = pg.FungalGraph(
    points,
    growth_iterations=50,
    prune_weak_factor=0.5
)

  5. Monitoring Network Properties

    graph = pg.FungalGraph(points, seed=42)

# Degree distribution
degrees = graph.graph.degree()
print(f"Degree stats: min={min(degrees)}, max={max(degrees)}, "
      f"mean={sum(degrees)/len(degrees):.2f}")

# Edge lengths
lengths = graph.lengths
print(f"Length stats: min={lengths.min():.3f}, max={lengths.max():.3f}, "
      f"mean={lengths.mean():.3f}")

# Connectivity
print(f"Connected components: {graph.cc}")
print(f"Network is connected: {graph.cc == 1}")

Common Issues and Solutions#

Issue 1: Network too sparse

# Solution: Increase candidates and reduce pruning
graph = pg.FungalGraph(
    points,
    distance_threshold_percentile=85,  # More candidates
    prune_weak_factor=0.1,             # Less pruning
    growth_iterations=150               # More growth
)

Issue 2: Network too dense

# Solution: Decrease candidates and increase pruning
graph = pg.FungalGraph(
    points,
    distance_threshold_percentile=65,  # Fewer candidates
    prune_weak_factor=0.4,             # More pruning
    growth_iterations=50                # Less growth
)

Issue 3: High-degree hubs forming

# Solution: Decrease max_degree
graph = pg.FungalGraph(
    points,
    max_degree=4  # Stricter constraint
)

Issue 4: Slow performance on large networks

# Solution: Reduce candidate set and iterations
graph = pg.FungalGraph(
    points,
    distance_threshold_percentile=70,  # Fewer candidates
    growth_iterations=75                # Fewer iterations
)

Algorithm Variants#

The current implementation can be modified for specific use cases:

Deterministic Variant:

# Remove randomness by always accepting high-benefit edges
# Modify benefit acceptance: if benefit > 0.5 instead of random < benefit

Aggressive Growth:

# Grow until hitting 3× backbone size
# Current: stops if m > len(base_edges) * 3

Custom Benefit Weights:

# Current: 0.4*dist + 0.3*degree + 0.3*shortcut
# Could be parameterized for different optimization goals

References#

  1. Bebber, D. P., Hynes, J., Darrah, P. R., Boddy, L., & Fricker, M. D. (2007). Biological solutions to transport network design. Proceedings of the Royal Society B, 274(1623), 2307-2315.

  2. Fricker, M. D., Boddy, L., Nakagaki, T., & Bebber, D. P. (2017). Adaptive biological networks. Adaptive Networks: Theory, Models and Applications, 51-70.

  3. Tero, A., et al. (2010). Rules for biologically inspired adaptive network design. Science, 327(5964), 439-442.

    • Referenced for PhysarumGraph backbone
